Vůz na beton nový Constmach Planetary Type Concrete Mixer (Paddle Mixer)

You can call us 24/7 for planetary type concrete mixer for sale.

The planetary type concrete mixer series of Constmach brand reveals its difference in the sector by offering suitable solutions for projects of all sizes. The CPLN series is offered in a wide range from 0.5 to 2 with various loading capacities and is designed to meet all kinds of needs of users. These mixers are equipped with high-quality motor options and durable materials, so they provide impressive performance even in long-term and demanding use.

Each model offers maximum durability with specially designed Hardox 450 side wear plates and ST 52 bottom wear plates. In addition, the Ni-Hard mixing handle wear plates, ranging from 25mm to 30mm, show excellent resistance even under continuous operating conditions. The CPLN series has been developed to provide excellent blend and durability even in harsh conditions.

User-friendly features such as hydraulic discharge cover and maintenance cover with safety sensor increase work safety and ease of use. These features make maintenance processes easier while maximizing operational efficiency. Constmach's planetary type concrete mixer series takes the industry standards to a new level in terms of durability, efficiency and user safety.

The CPLN series combines technology and innovation in its field to provide reliable and efficient performance in all your projects.Dec. These mixers, each of which is carefully designed, contribute to the success of your projects by providing ideal solutions for your long-term investments.

Technical Specifications of CPLN - 0.5 Model Planetary Type Concrete Mixer

Loading Volume: 750 lt
Fresh Concrete Volume: 625 lt
Compacted Concrete Volume: 500 lt
Engine Power: 15.5 kW

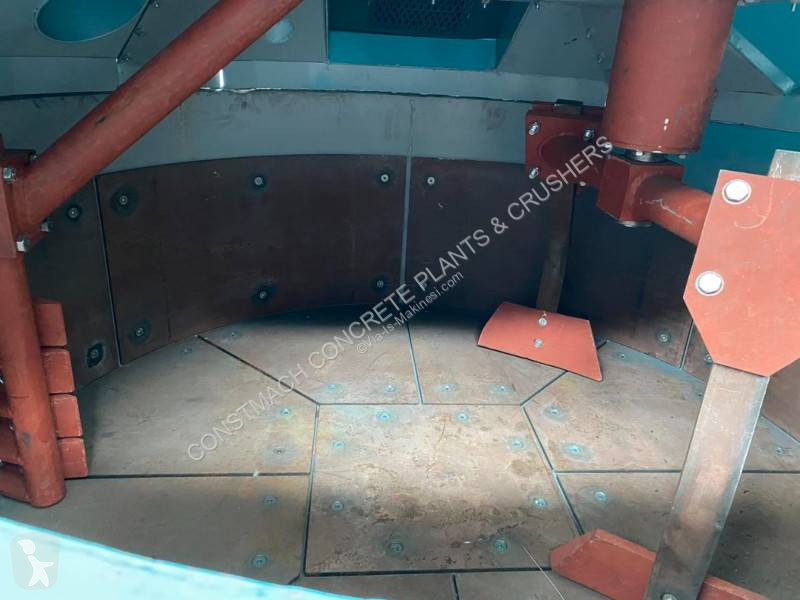

Side Body Wear Plates: 10 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Handle Wear Plates: 25 mm Ni-Hard

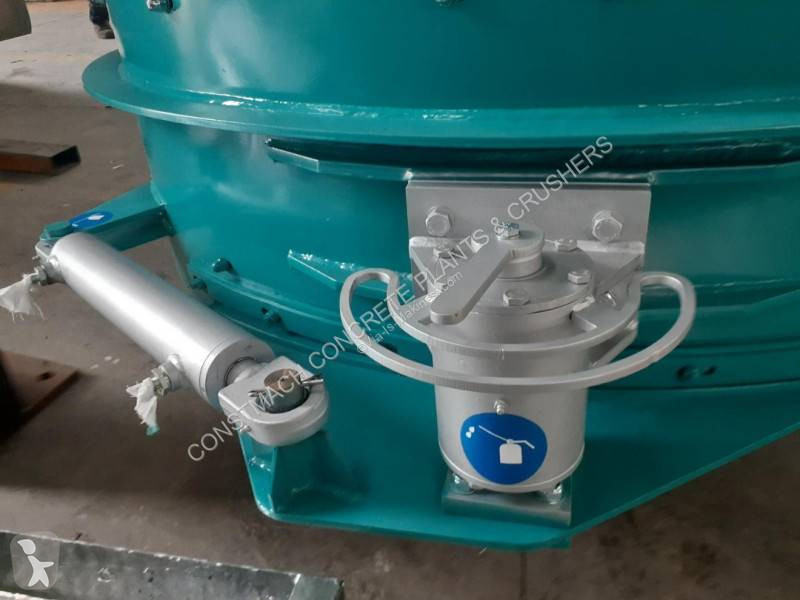

Hydraulic Discharge Cover: Available
Maintenance Cover with Safety Sensor: Available

CPLN - 0.75 Model Planetary Type Concrete Mixer Technical Specifications

Loading Volume: 1.000 lt
Fresh Concrete Volume: 875 lt
Compacted Concrete Volume: 750 lt
Motor Power: 30 kW
Side Body Wear Plates: 10 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Handle Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Cover: Available
Maintenance Cover with Safety Sensor: Available
Technical Specifications of CPLN - 1 Model Planetary Type Concrete Mixer

Loading Volume: 1.500 lt
Fresh Concrete Volume: 1.250 lt
Compacted Concrete Volume: 1.000 lt
Engine Power: 45 kW
Side Body Wear Plates: 15 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Handle Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Cover: Available
Maintenance Cover with Safety Sensor: Available

Technical Specifications of CPLN - 1.5 Model Planetary Type Concrete Mixer

Loading Volume: 2.250 lt
Fresh Concrete Volume: 2.000 lt
Compacted Concrete Volume: 1.500 lt
Engine Power: 2 x 30 kW
Side Body Wear Plates: 10 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Handle Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Cover: Available
Maintenance Cover with Safety Sensor: Available

Technical Specifications of CPLN - 2 Model Planetary Type Concrete Mixer

Loading Volume: 3,000 lt
Fresh Concrete Volume: 2.500 lt
Compacted Concrete Volume: 2.000 lt
Engine Power: 2 x 37 kW
Side Body Wear Plates: 15 mm Hardox 450
Bottom Wear Plates: 12 mm ST 52
Mixing Handle Wear Plates: 30 mm Ni-Hard
Hydraulic Discharge Cover: Available
Maintenance Cover with Safety Sensor: Available
