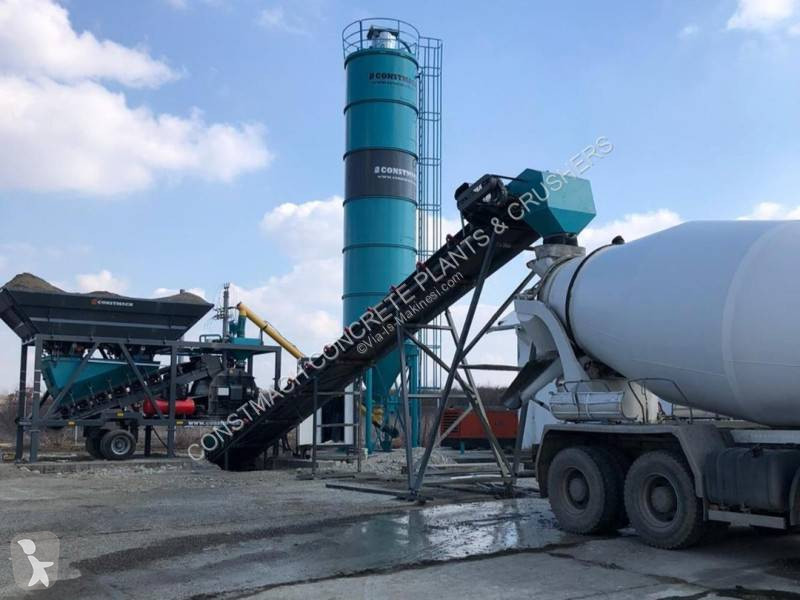

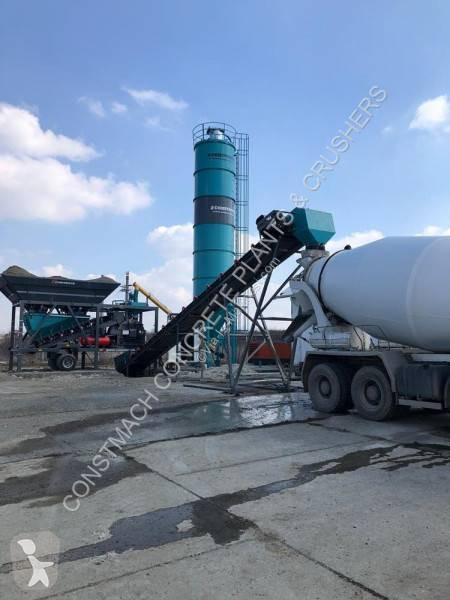

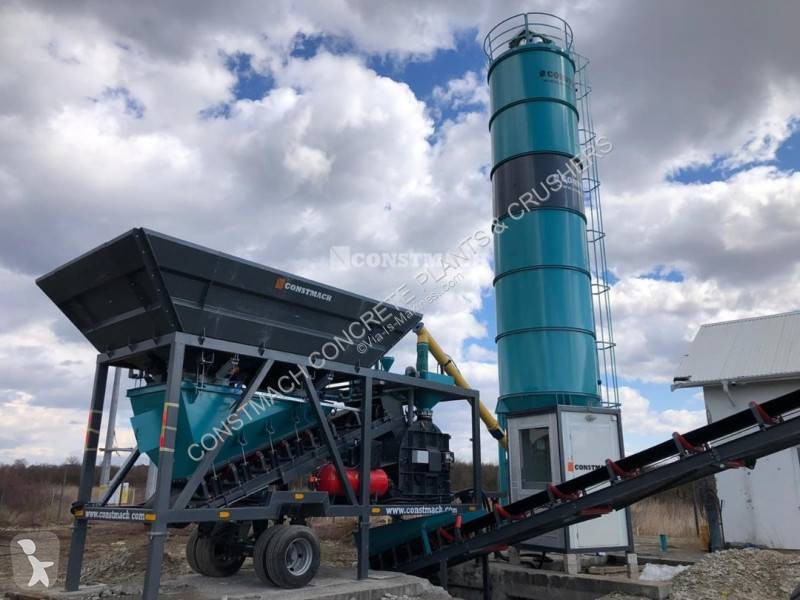

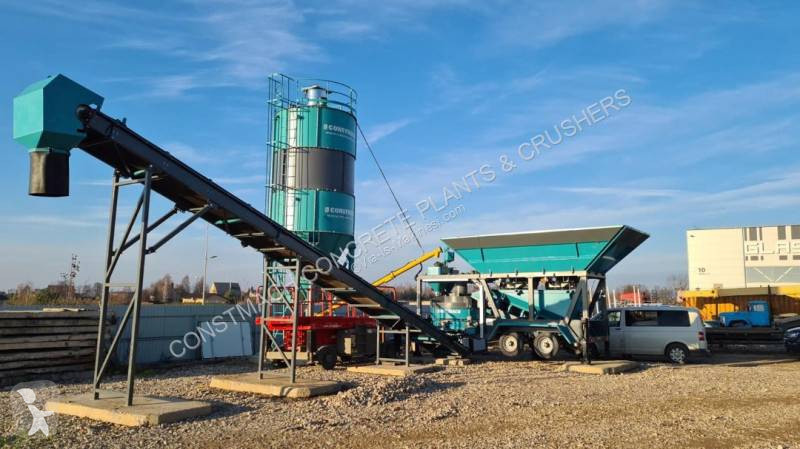

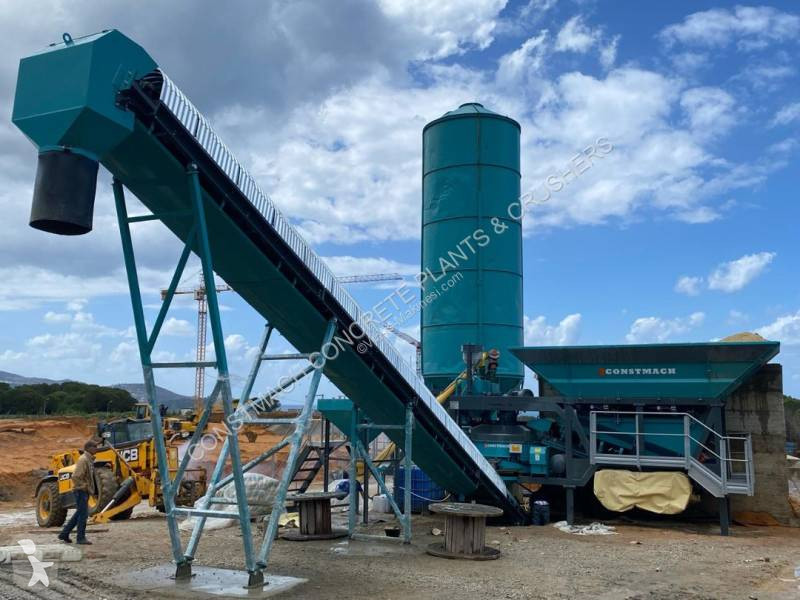

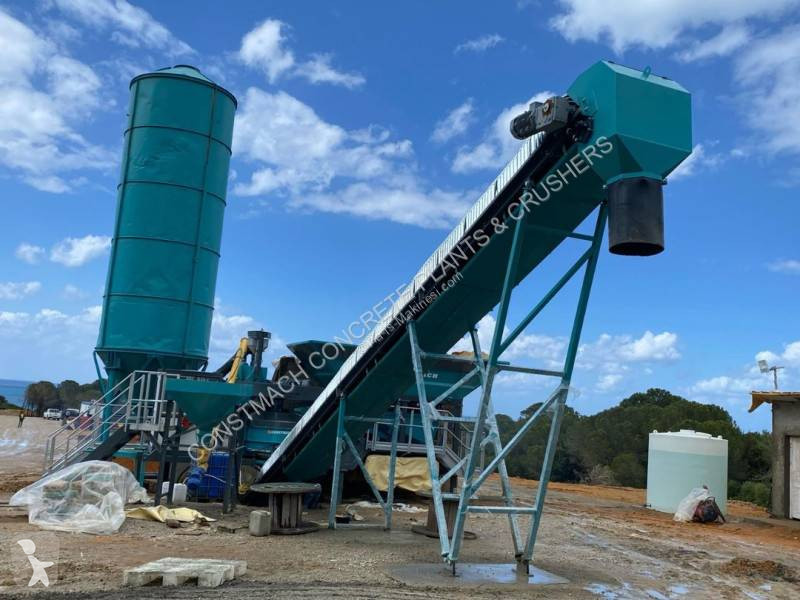

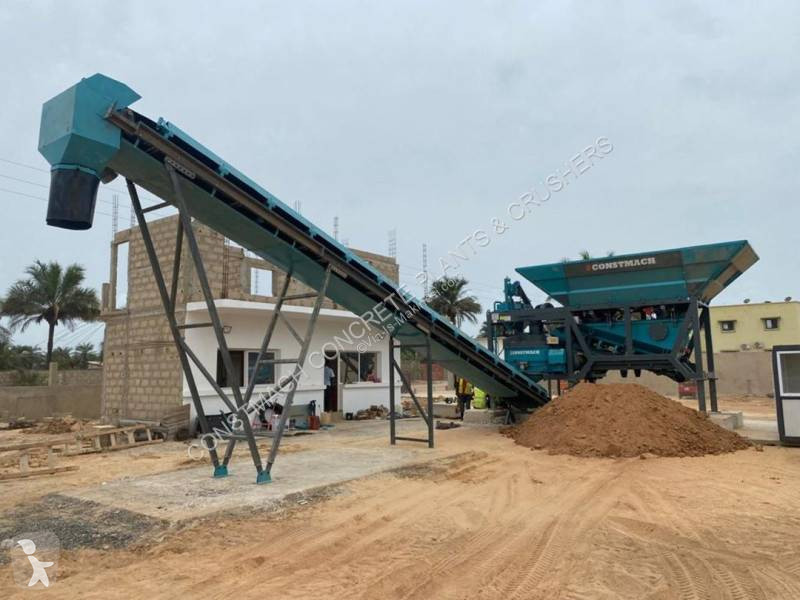

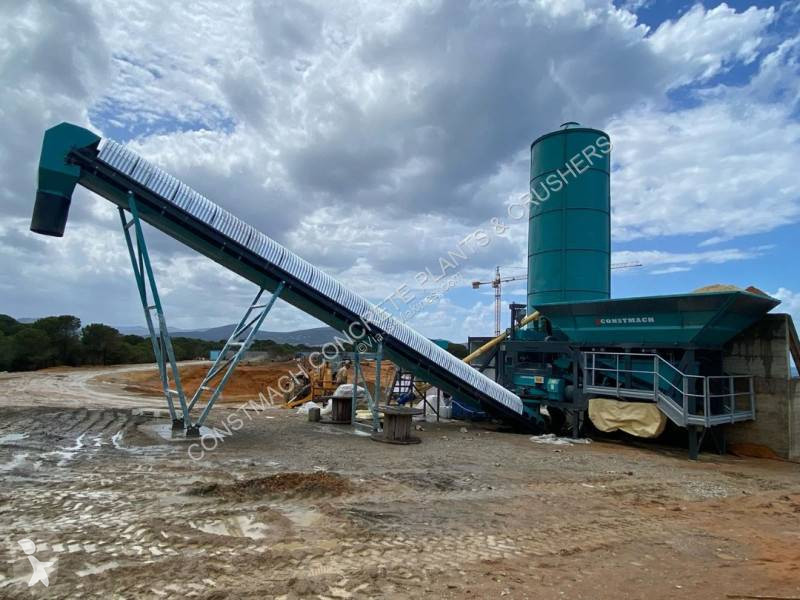

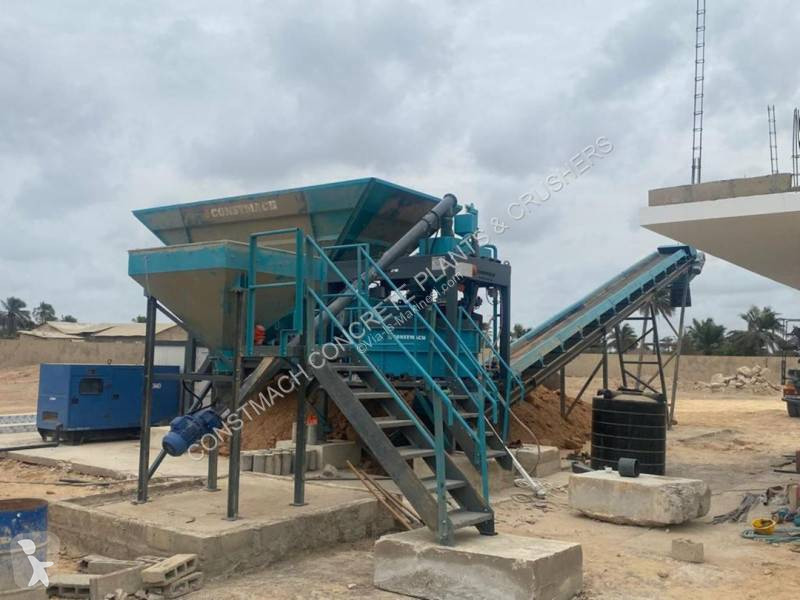

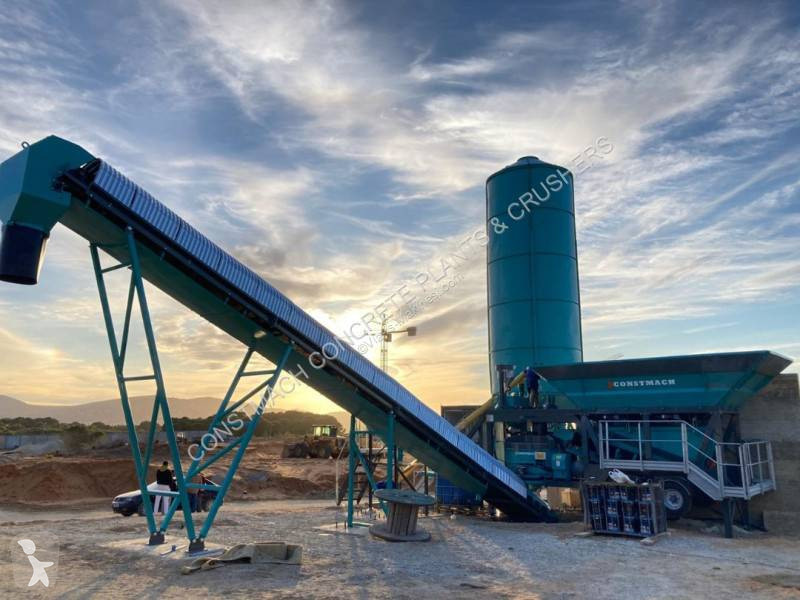

Betonový agregát nový Constmach Small Mobile Concrete Batching Plant 45 m³/h

You can call us 24/7 for a small mobile concrete batching plant for sale.

The mobile and compact concrete batching plant represents the pinnacle of innovation, offering maximum mobility with minimum investment.

Unlike conventional mobile concrete batching plants, the MOBICOM 45 is a single 40 ft. it has a special feature that can be transported in a container. This unique feature greatly simplifies logistics, allows the entire plant to be transported by only one truck, and does not require extensive site preparation or a mobile crane. This power plant remains in the same configuration both during production and transportation, ensures a smooth transition and allows you to continue without interruption during operation.

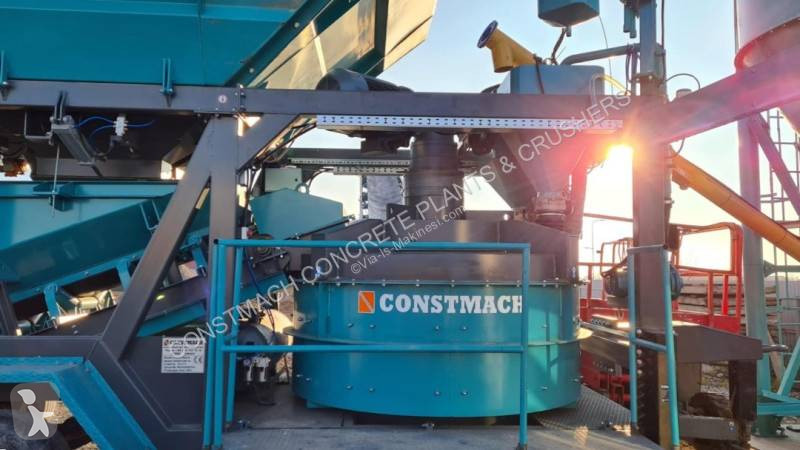

MOBICOM 45 is not limited to easy portability. Its design makes sure that operational efficiency is never compromised. Since the mixer is located close to the ground, the concrete produced is transferred directly to the mixer by a conveyor belt, which speeds up the flow from production to the application, increases productivity and reduces labor requirements.

The technical characteristics of the MOBICOM 45 include a production capacity of 45 m3/h and a compact space requirement of only 200 m2, which provides an ideal solution when space and efficiency are important. Dec. The power plant's total motor power of 55 kW and the required generator capacity of 80 kVA offer robust performance in a variety of environments. With different mixer options such as Pan, Single Shaft and Planet, MOBICOM 45 offers flexibility to meet various project requirements.

In addition, MOB Decom 45 has been designed with sustainability and cost-effectiveness in mind, with cement silo capacities ranging from 50 to 200 tons in accordance with various project scales and durations.

Mobicom 45 Mobile Concrete Batching Plant Technical Specifications

General Features

Production capacity 45 m3/h
Transport Position Size 8(L) x 2.3(W) x 2.5(H) meters
Weight 9.5 tons
Total Motor Power 55 kW
Required Electricity Generator 80 kVA
Mixer Options Pan - Single Shaft - Planet
The required area for operation is 200 m2

Technical Specifications

Aggregate Stock Hopper 4 x 6 m3
Aggregate Weighing Hopper 1 m3
Aggregate Transfer Conveyor 800 x 15.250 mm
Mixer Wet Concrete Volume 0.0.75 m3
Cement Weighing Hopper 450 kg
Water Weighing Hopper 300 lt
Additive Weighing Hopper 20 lt
Air Compressor 300 lt, 4 kW
Cement Silo Decking capacity between 50 and 200 tons option
Control type FULLY AUTOMATIC
